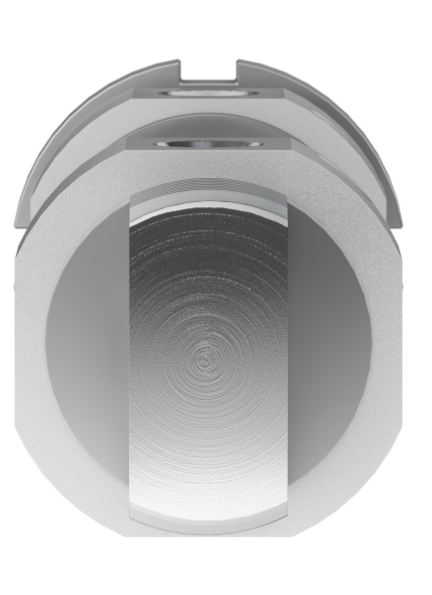

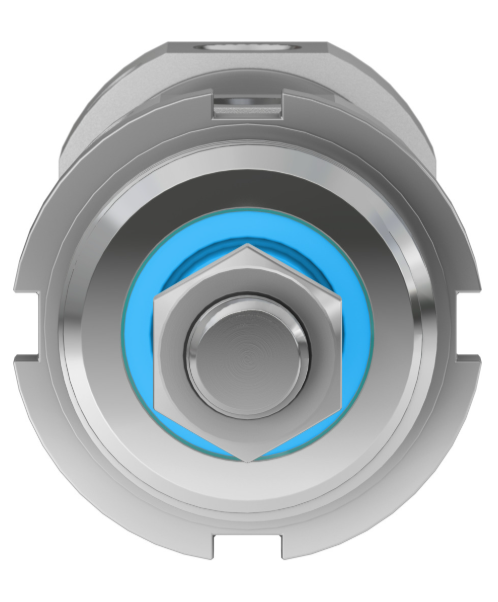

Festo Round cylinder DSNU-50-40-PPV-A 196041

• Stroke: 50 mm
• Piston diameter: 40 mm
• Piston rod thread: M12x1.25
• Cushioning: Pneumatic cushioning, adjustable at both ends
• Mounting: positionoptional
• Design: Piston Piston rod Cylinder barrel
• Position detection: Via proximity switch
• Symbol: 00991235
• Operating pressure: 0.1 MPa ... 1 MPa
• Operating pressure: 1 bar ... 10 bar
• Mode of operation: Double-acting
• Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
• Note on operating and pilot medium: Lubricated operation possible (in which case lubricated operation will always be required)
• Corrosion resistance class CRC: 2 - Moderate corrosion stress
• LABS (PWIS) conformity: VDMA24364-B1/B2-L
• Ambient temperature: -20 °C ... 80 °C
• Cushioning length: 18 mm
• Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke: 633.3 N
• Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke: 752.9 N
• Moving mass: 310 g
• Product weight: 781 g
• Type of mounting: With accessories
• Pneumatic connection: G1/4
• Note on materials: RoHS-compliant
• Material cover: Wrought aluminium alloy
• Material seals: NBR TPE-U(PU)
• Material piston rod: High-alloy steel
• Material cylinder barrel: High-alloy stainless steel

Round cylinder

DSNU-40-50-PPV-A

196032

GTIN: 4052568158804
