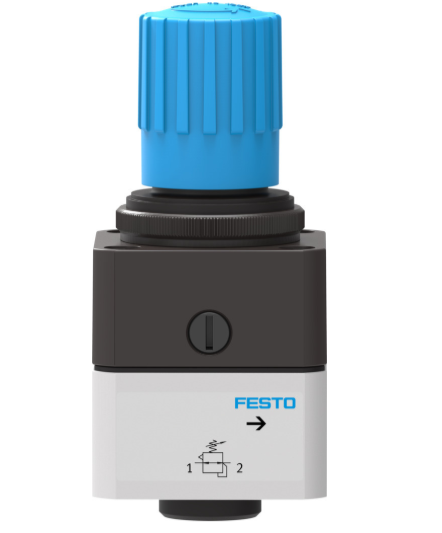

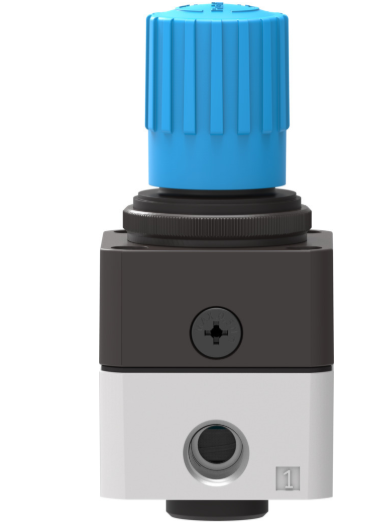

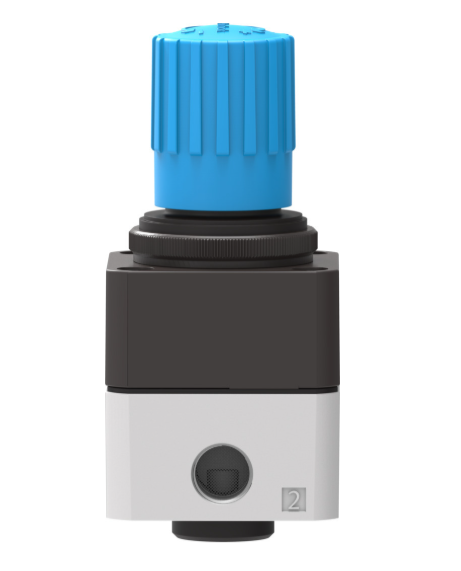

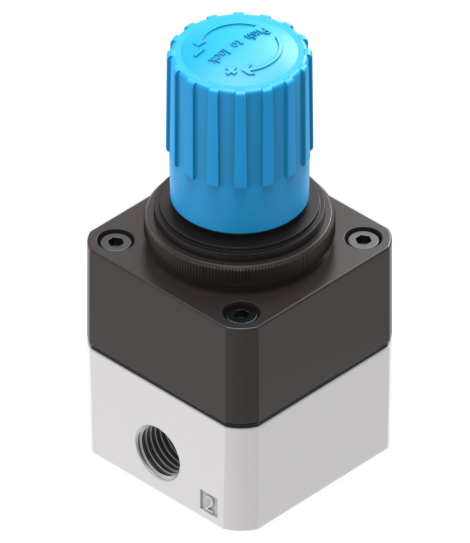

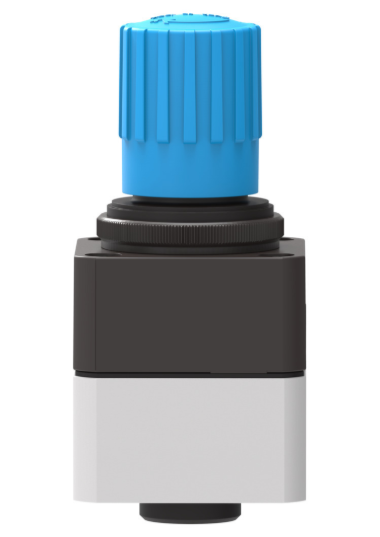

Festo Precision pressure regulator LRP-1/4-2,5 162834

• Actuator lock: Rotary knob with detent
• Mounting position: optional
• Design: Piloted precision diaphragm control valve
• Controller function: Output pressure constant With secondary venting
• Symbol: 00991540
• Pressure gauge (ANALOG) or Pressure display (DIGITAL): Prepared for G1/8
• Operating pressure: 0.1 MPa ... 1.2 MPa
• Operating pressure: 1 bar ... 12 bar
• Pressure regulation range: 0.05 bar ... 2.5 bar
• Inlet pressure 1: 1 bar ... 12 bar
• Max. pressure hysteresis: 0.02 bar
• Standard nominal flow rate (standardised to DIN 1343): 1800 l/min
• Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4] Inert gases
• Note on operating and pilot medium: Lubricated operation not possible
• LABS (PWIS) conformity: VDMA24364-B1/B2-L
• Media temperature: -10 °C ... 60 °C
• Ambient temperature: -10 °C ... 60 °C
• Product weight: 310 g
• Type of mounting: Front panel mounting In-line installation With accessories
• Pneumatic connection, port 1: G1/4
• Pneumatic connection, port 2: G1/4
• Note on materials: RoHS-compliant
• Material seals: NBR
• Material housing: Aluminium

Precision pressure regulator

LRP-1/4-2,5

162834

GTIN: 4052568012762
