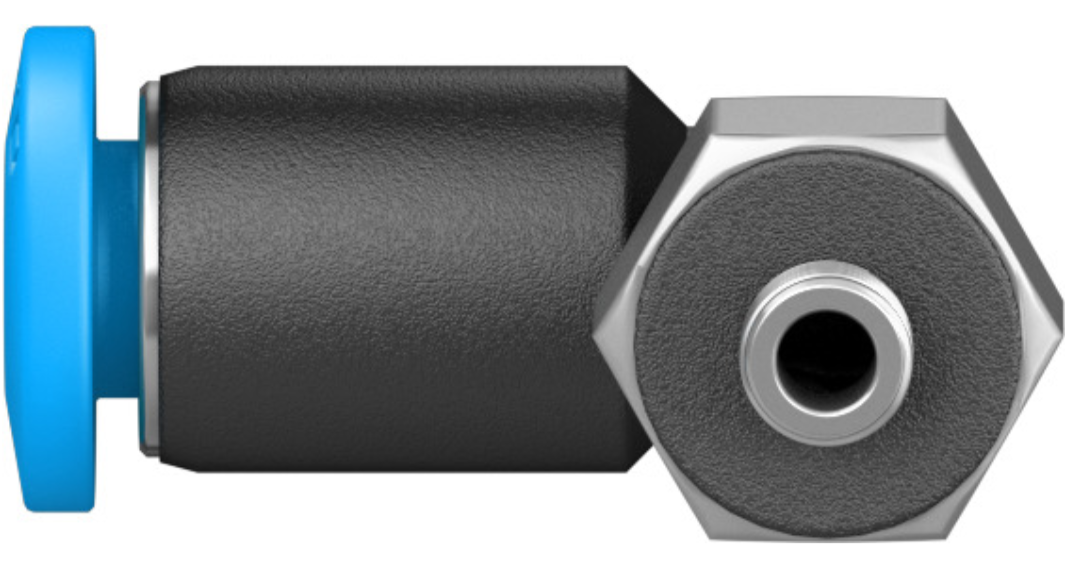

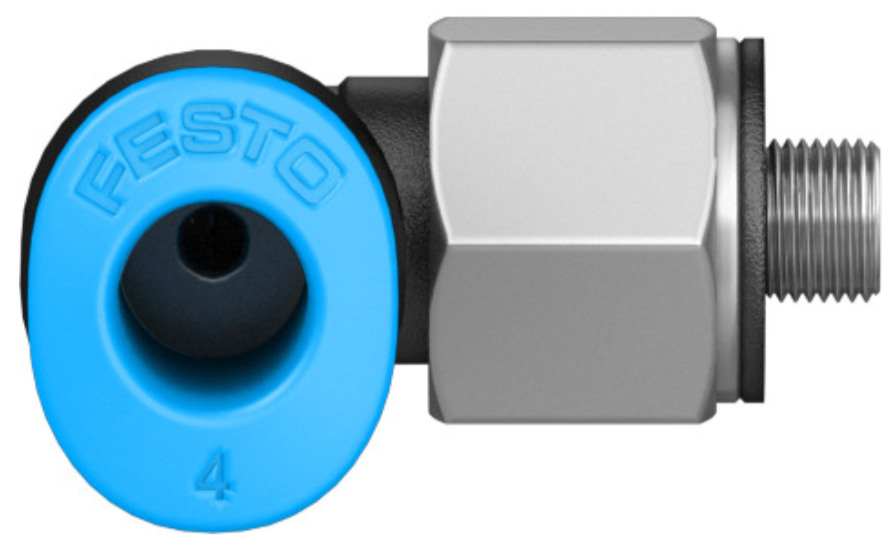

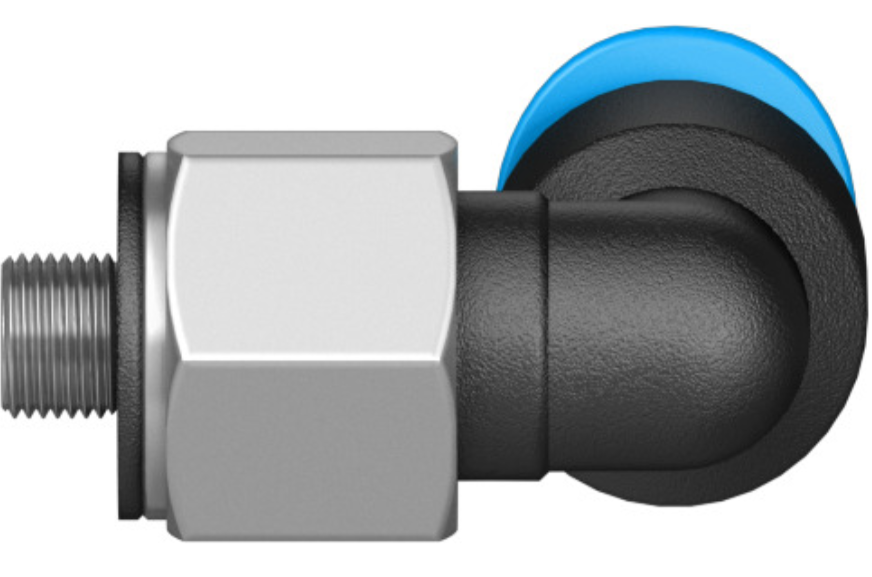

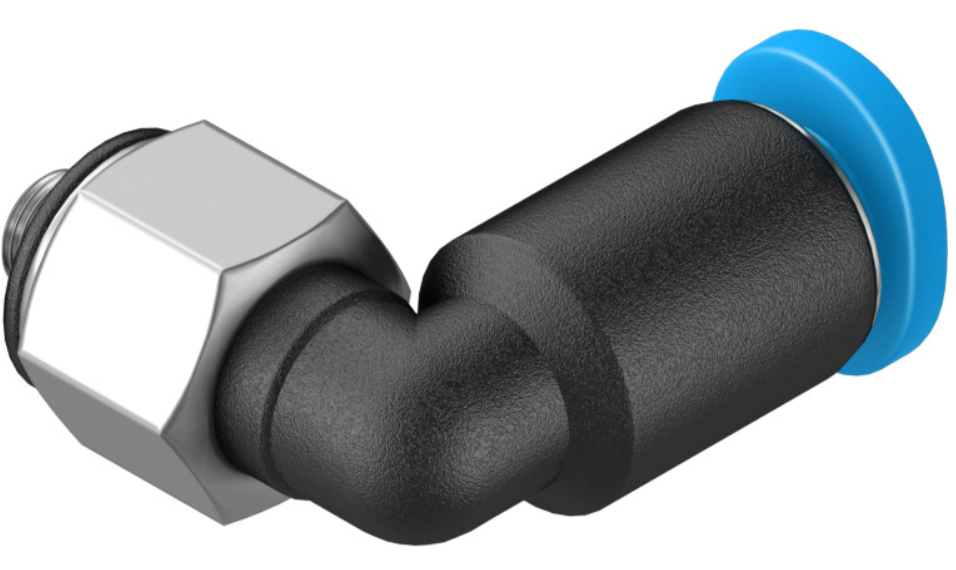

Festo Push-in L-fitting QSML-M3-4 153332

• Size: Mini
• Nominal size: 1.3 mm
• Type of seal on screwed plug: Sealing ring
• Mounting position: Optional
• Design: L-shape
• Size of pack: 10
• Design: Push-pull principle
• Operating pressure complete temperature range: -0.095 MPa ... 0.6 MPa
• Operating pressure complete temperature range: -0.95 bar ... 6 bar
• Operating pressure complete temperature range: -13.775 psi ... 87 psi
• Temperature-dependent operating pressure: -0.095 MPa ... 1.4 MPa
• Temperature-dependent operating pressure: -0.95 bar ... 14 bar
• Temperature-dependent operating pressure: -13.775 psi ... 203 psi
• Operating medium: Compressed air to ISO 8573-1:2010 [7:-:-]
• Note on operating and pilot medium: Lubricated operation possible
• Corrosion resistance class CRC: 1 - Low corrosion stress
• LABS (PWIS) conformity: VDMA24364-B1/B2-L
• Ambient temperature: -10 °C ... 80 °C
• Nominal torque: 0.48 Nm
• Tolerance for nominal tightening torque: ± 55%
• Product weight: 3 g
• Type of mounting: External hexagon, A/F 8 mm
• Pneumatic connection, port 1: Male thread M3
• Pneumatic connection, port 2: For tubing outside diameter of 4 mm
• Colour of release ring: Blue
• Material screwed plug: Nickel-plated brass
• Note on materials: RoHS-compliant
• Material housing: PBT
• Material release ring: POM
• Material tubing seal: NBR
• Material tubing clamp component: High-alloy stainless steel

Push-in L-fitting

QSML-M3-4

153332

GTIN: 4052568033958
