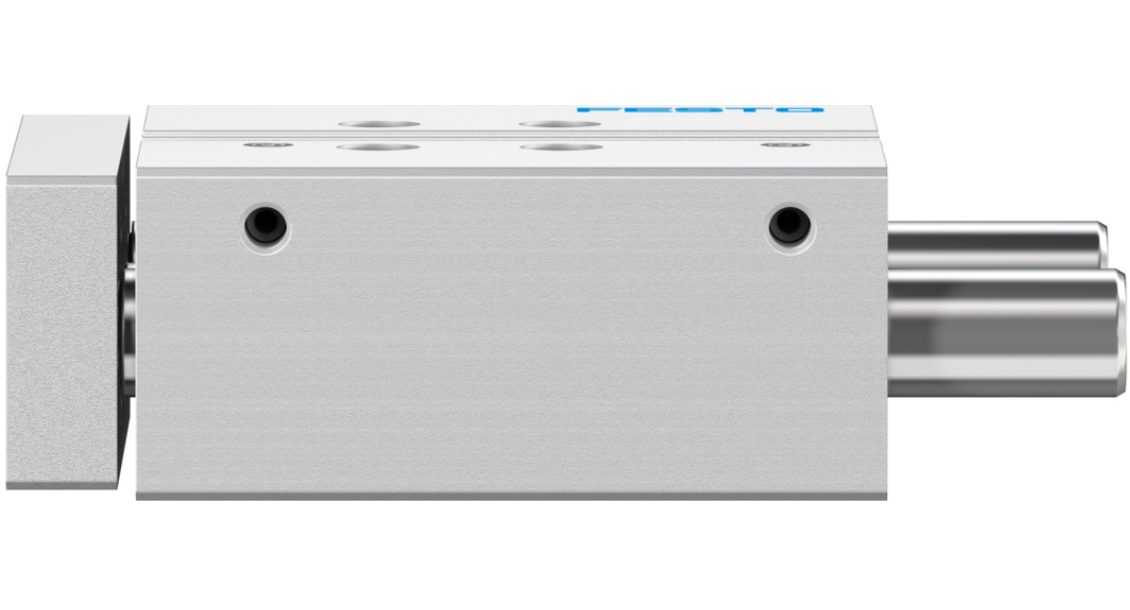

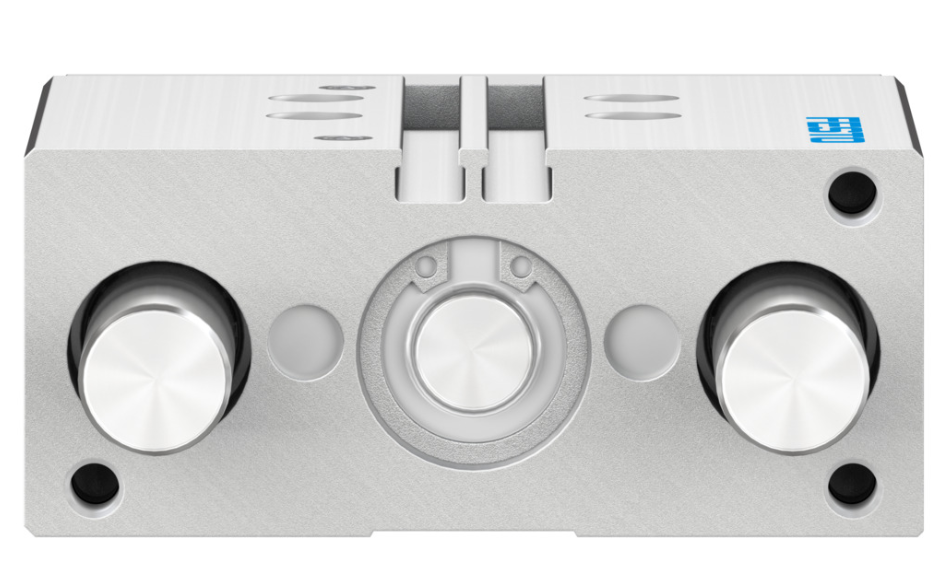

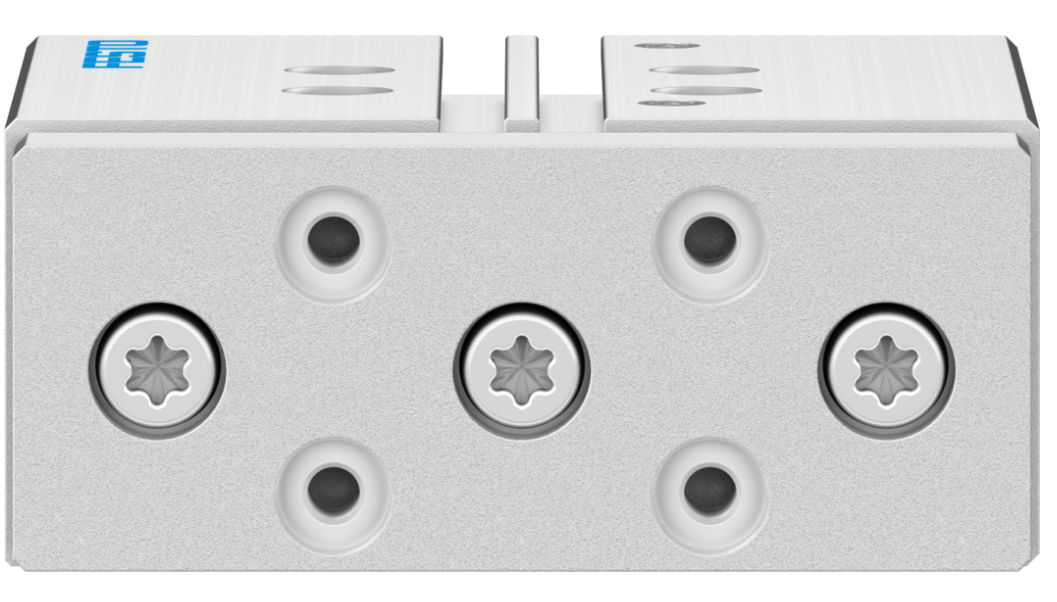

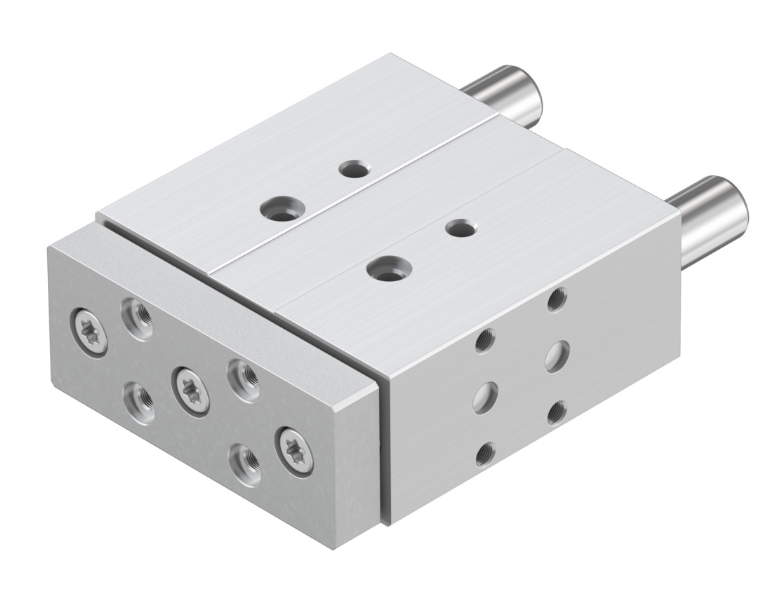

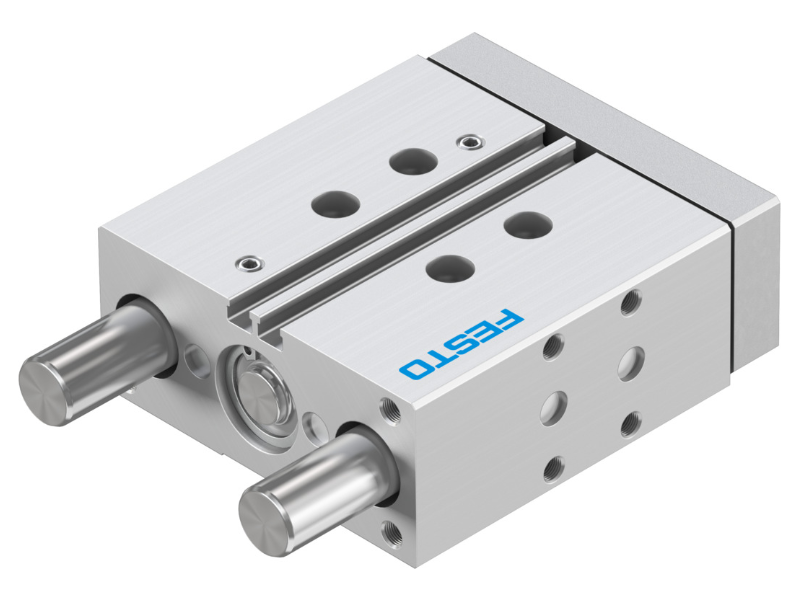

Festo Guided drive DFM-20-40-P-A-GF 170843

• Distance from centre of gravity of load to yoke plate xs: 50 mm
• Stroke: 40 mm
• Piston diameter: 20 mm
• Operating mode, drive unit: Yoke
• Cushioning: Elastic cushioning rings/plates at both ends
• Mounting position: optional
• Guide: Plain-bearing guide
• Design: Guidance
• Position detection: Via proximity switch

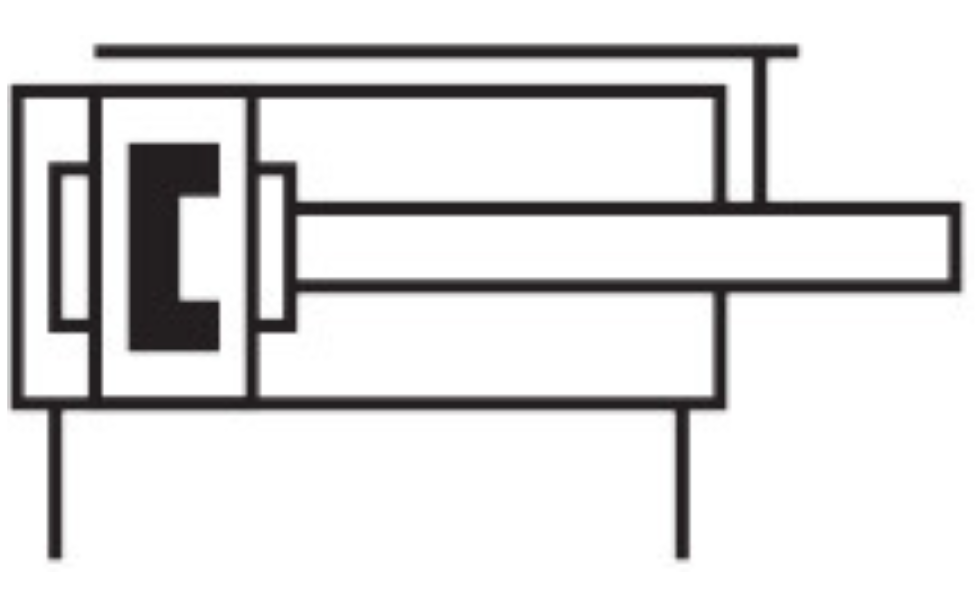

• Symbol: 00991737
• Operating pressure: 0.2 MPa ... 1 MPa
• Operating pressure: 2 bar ... 10 bar
• Max. speed: 0.8 m/s
• Mode of operation: Double-acting
• Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
• Note on operating and pilot medium: Lubricated operation possible (in which case lubricated operation will always be required)
• Corrosion resistance class CRC: 1 - Low corrosion stress
• LABS (PWIS) conformity: VDMA24364-B1/B2-L
• Cleanroom class: Class 7 according to ISO 14644-1
• Ambient temperature: -20 °C ... 80 °C
• Impact energy in end positions: 0.2 J
• Max. force Fy: 709.3 N
• Max. force Fy static: 709.3 N
• Max. force Fz: 709.3 N
• Max. force Fz static: 709.3 N
• Max. moment Mx: 20.57 Nm
• Max. torque Mx static: 20.57 Nm
• Max. moment My: 16.31 Nm
• Max. torque My static: 16.31 Nm
• Max. moment Mz: 16.31 Nm
• Max. torque Mz static: 16.31 Nm
• Max. permissible torque load Mx as a function of stroke: 4.21 Nm
• Max. effective load dependent upon stroke at defined distance xs: 110 N
• Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke: 141 N
• Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke: 188 N
• Moving mass: 552 g
• Product weight: 1070 g
• alternative connections: See product drawing
• Pneumatic connection: M5
• Note on materials: RoHS-compliant
• Material cover: Wrought aluminium alloy
• Material seals: NBR
• Material housing: Wrought aluminium alloy
• Material piston rod: High-alloy stainless steel

Guided drive

DFM-20-40-P-A-GF

170843

GTIN: 4052568139681
