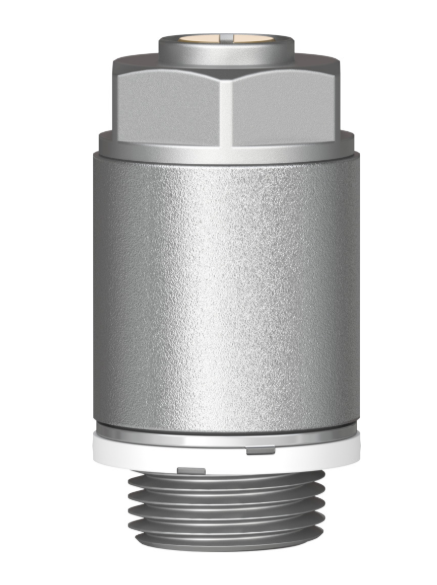

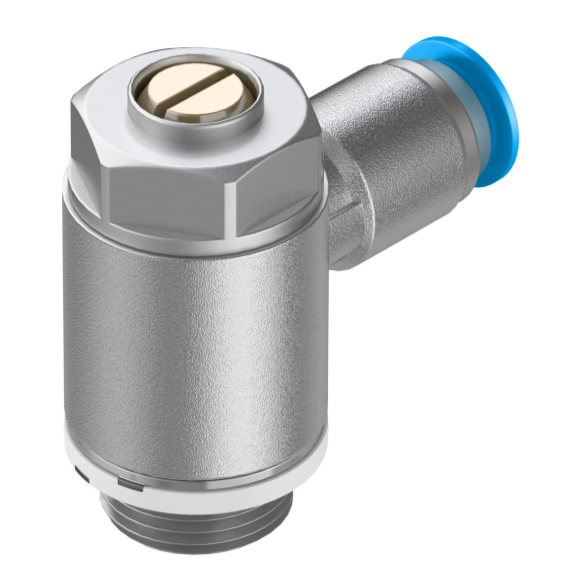

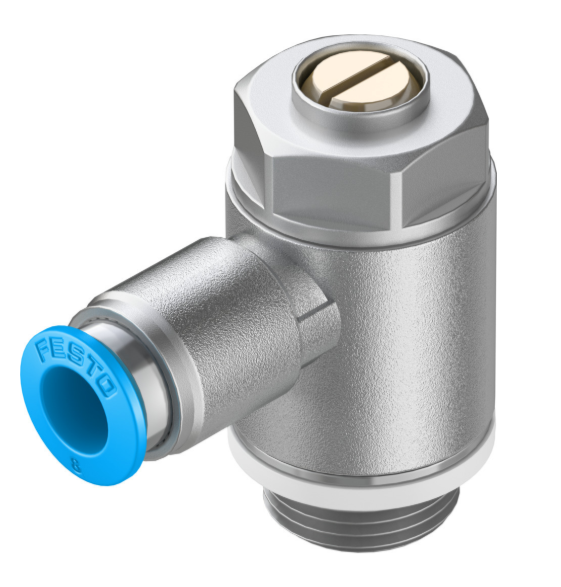

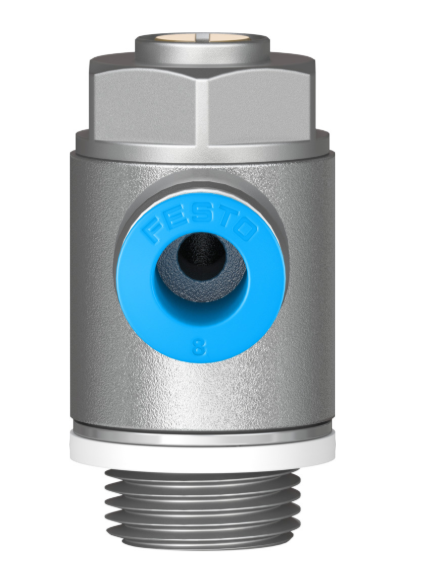

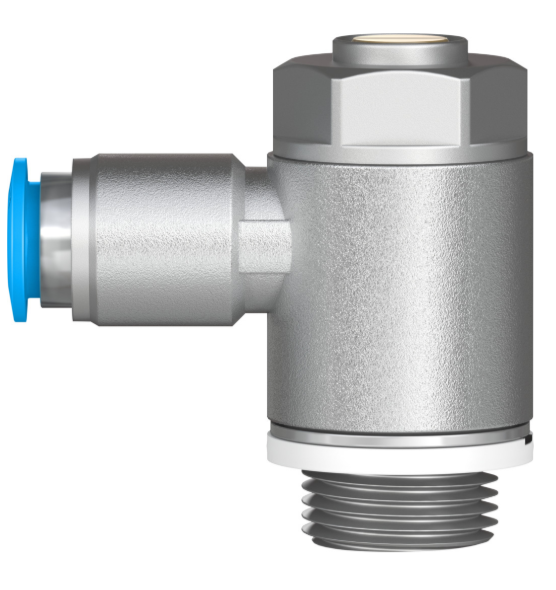

Festo One way Flow Control Valve GRLA 3/8 QS 8 RS

• Valve function: Exhaust air one-way flow control function
• Pneumatic connection, port 1: QS-8
• Pneumatic connection, port 2: G3/8
• Adjustment component: Slotted head screw
• Type of mounting: Screw-in
• Standard nominal flow rate in flow control direction: 820 l/min
• Standard nominal flow rate in blocked direction: 450 l/min ... 850 l/min
• Ambient temperature: -10 °C ... 60 °C
• Maritime classification: See certificate
• Mounting position: optional

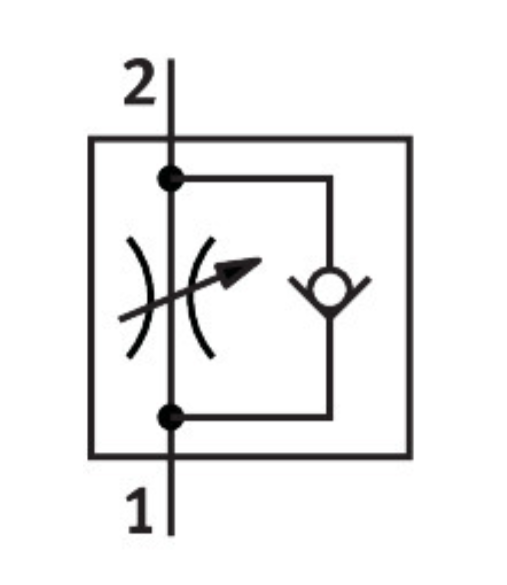

• Symbol: 00991452
• Operating pressure complete temperature range: 0.2 bar ... 10 bar
• Standard flow rate in flow control direction 0.6->0 MPa (6->0 bar, 87->0 psi): 1300 l/min
• Standard flow rate in non-return direction 0.6->0 MPa (6->0 bar, 87->0 psi): 1080 l/min ... 1420 l/min
• Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
• Note on operating and pilot medium: Lubricated operation possible (in which case lubricated operation will always be required)
• LABS (PWIS) conformity: VDMA24364-B1/B2-L
• Cleanroom class: Class 4 according to ISO 14644-1
• Media temperature: -10 °C ... 60 °C
• Nominal torque: 10 Nm
• Tolerance for nominal tightening torque: ± 10%
• Product weight: 60 g
• Material screwed plug: Wrought aluminium alloy
• Note on materials: RoHS-compliant
• Material seals: NBR
• Material release ring: POM
• Material adjusting screw: Brass
• Material swivel fitting: Die-cast zinc Chromated

One-way flow control valve

GRLA-3/8-QS-8-D

193150

GTIN: 4052568015091
