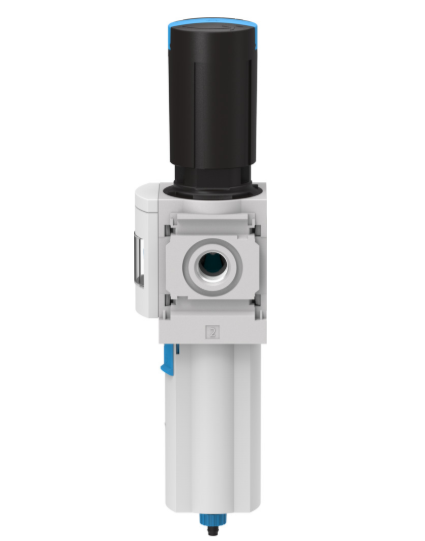

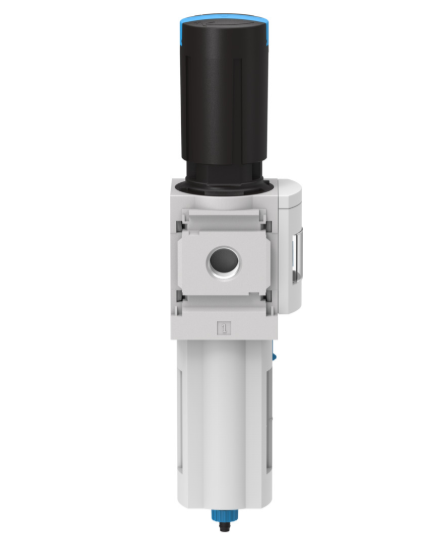

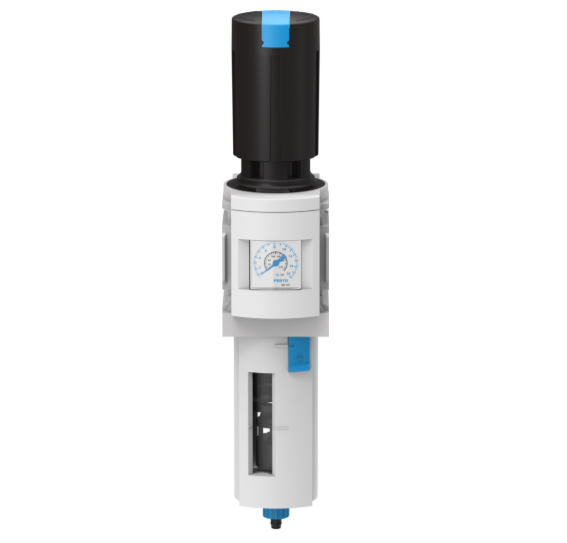

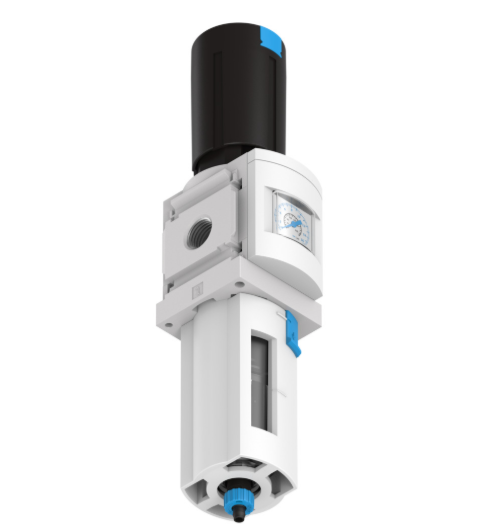

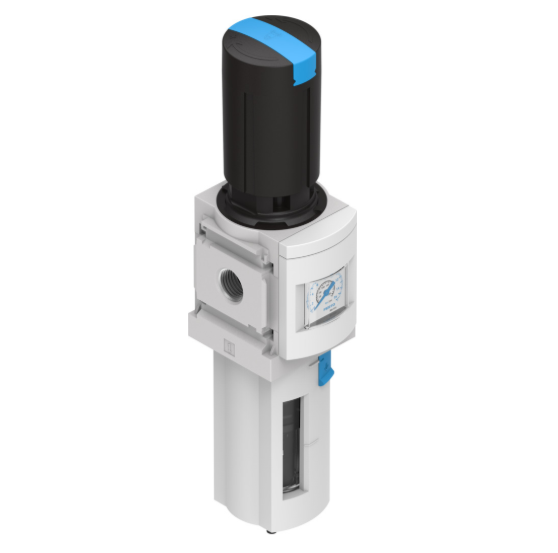

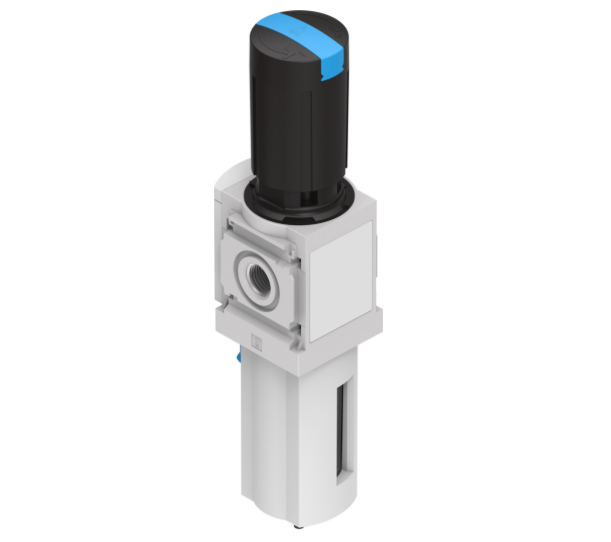

Festo Filter regulator MS6-LFR-1/2-D6-ERV-AS 529182

• Size: 6
• Series: MS
• Actuator lock: Rotary knob with detent can be closed with accessories
• Mounting position: Vertical +/-5°
• Grade of filtration"; 40 µm
• Condensate drain: Fully automatic Manual, non-detenting
• Design: Filter regulator with pressure gauge
• Max. condensate volume: 38 ml
• Controller function: Output pressure constant With secondary venting
• Bowl guard: Plastic bowl guard
• Degree of condensate separation: >75 %
• Symbol: 00991587
• Pressure gauge (ANALOG) or Pressure display (DIGITAL): With pressure gauge
• Operating pressure: 0.2 MPa ... 1.2 MPa
• Operating pressure: 2 bar ... 12 bar
• Pressure regulation range: 0.3 bar ... 7 bar
• Max. pressure hysteresis: 0.025 MPa
• Max. pressure hysteresis: 0.25 bar
• Max. pressure hysteresis: 3.625 psi
• Standard nominal flow rate (standardised to DIN 1343): 6200 l/min
• Operating medium: Compressed air to ISO 8573-1:2010 [7:4:-] Inert gases
• Corrosion resistance class CRC: 2 - Moderate corrosion stress
• LABS (PWIS) conformity: VDMA24364-B1/B2-L
• Storage temperature: -10 °C ... 60 °C
• Suitable for use with food: See supplementary material information
• Air purity class at output: Compressed air to ISO 8573-1:2010 [7:4:4]
• Media temperature: -10 °C ... 60 °C
• Ambient temperature: -10 °C ... 60 °C
• Pore size: <40 µm
• Product weight: 875 g
• Type of mounting: Either: Front panel mounting In-line installation With accessories
• Pneumatic connection, port 1: G1/2
• Pneumatic connection, port 2: G1/2
• Note on materials: RoHS-compliant
• Material control panel: PA POM
• Material seals: NBR
• Material filter: PE
• Material housing: Die-cast aluminium
• Material membrane: NBR
• Material bowl: PC
• Material separating plate: POM

Filter regulator

MS6-LFR-1/2-D6-ERV-AS

529182

GTIN: 4052568163648
