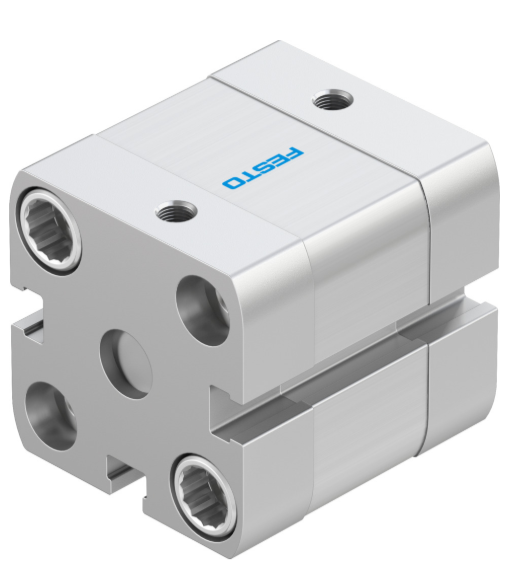

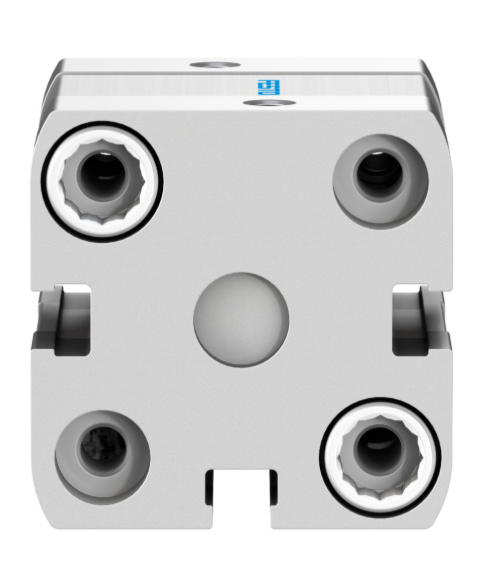

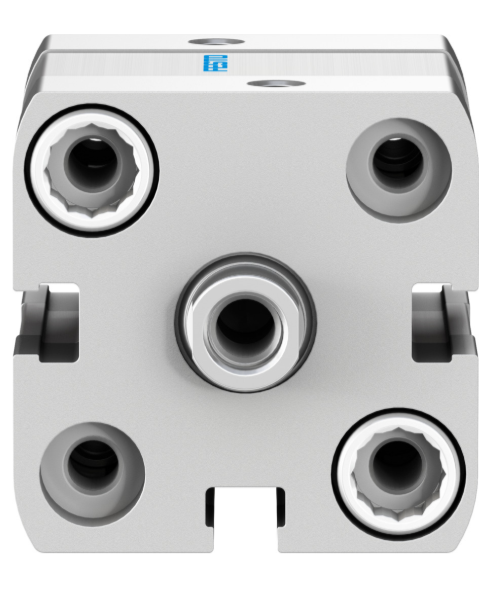

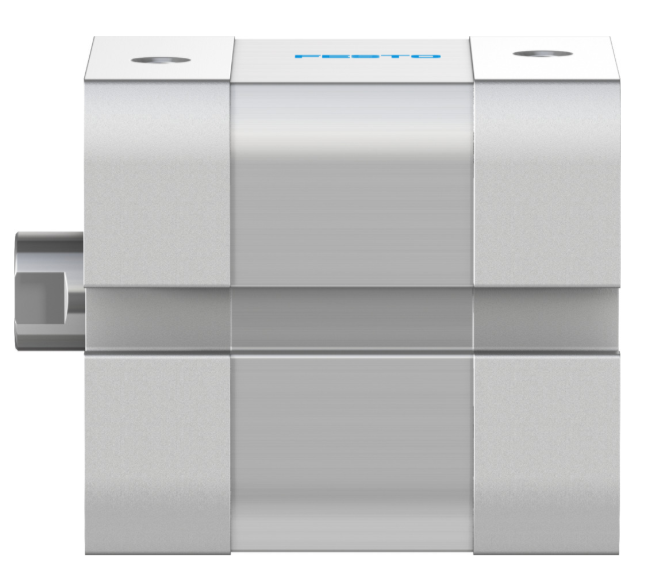

Festo COMPACT CYLINDER ADN-25-5-I-P-A 536259

• Stroke: 5 mm
• Piston diamete: r25 mm
• Piston rod thread: M6
• Cushioning: Elastic cushioning rings/plates at both ends
• Mounting position: optional
• Conforms to standard: ISO 21287
• Piston-rod end: Female thread
• Position detection: Via proximity switch

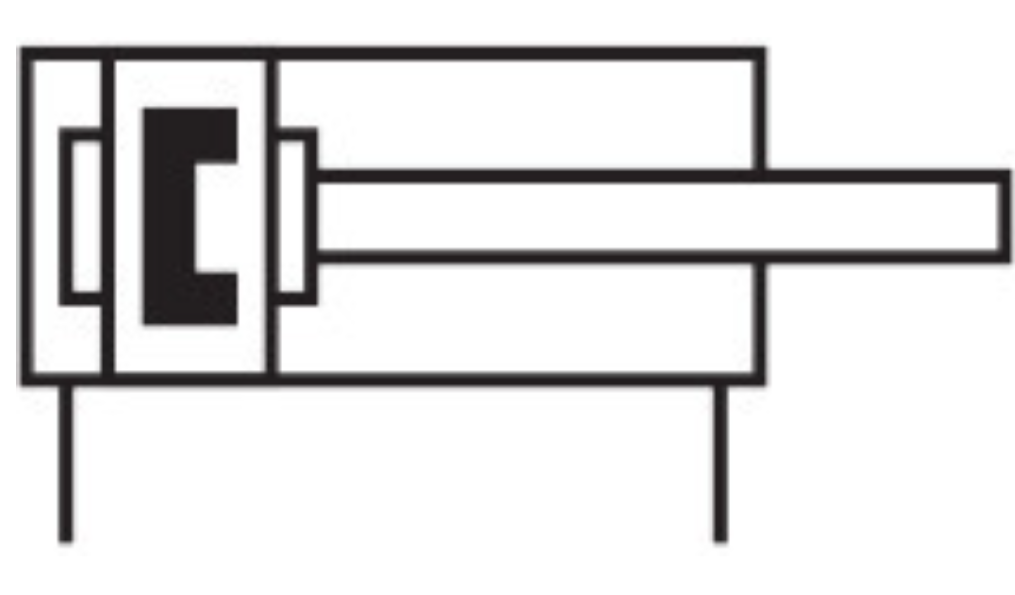

• Symbol: 00991217
• Variants: Piston rod at one end
• Operating pressure: 0.06 MPa ... 1 MPa
• Operating pressure: 0.6 bar ... 10 bar
• Mode of operation: Double-acting
• Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
• Note on operating and pilot medium: Lubricated operation possible (in which case lubricated operation will always be required)
• Corrosion resistance class CRC: 2 - Moderate corrosion stress
• LABS (PWIS) conformity: VDMA24364-B1/B2-L
• Cleanroom class: Class 6 according to ISO 14644-1
• Ambient temperature: -20 °C ... 80 °C
• Impact energy in end positions: 0.3 J
• Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke: 247 N
• Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke: 295 N
• Moving mass: 35 g
• Product weight: 185 g
• Type of mounting: Either: With through-hole Via female thread With accessories
• Pneumatic connection: M5
• Note on materials: RoHS-compliant
• Material collar screws: Steel
• Material cover: Anodised wrought aluminium alloy
• Material seals: TPE-U(PUR)
• Material piston rod: High-alloy steel
• Material cylinder barrel: Smooth-anodised wrought aluminium alloy

Compact cylinder

ADN-25-5-I-P-A

536259

GTIN: 4052568087630
