Festo Compact cylinder ADVU-12-25-P-A 156504

• troke: 25 mm
• Piston diameter: 12 mm
• Piston rod thread: M3
• Cushioning: Elastic cushioning rings/plates at both ends
• Mounting position: optional
• Mode of operation: Double-acting
• Piston-rod end: Female thread
• DesignPiston: Piston rod
• Position detection: Via proximity switch

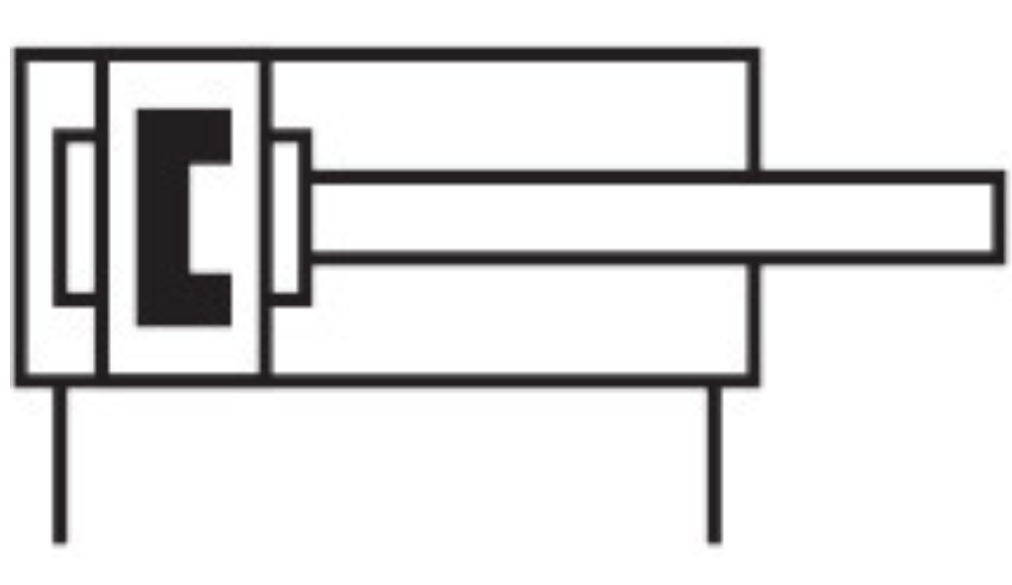

• Symbol: 00991217
• Variants: Piston rod at one end
• Operating pressure: 0.12 MPa ... 1 MPa
• Operating pressure: 1.2 bar ... 10 bar
• Operating pressure: 17.4 psi ... 145 psi
• Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
• Note on operating and pilot medium: Lubricated operation possible (in which case lubricated operation will always be required)
• Corrosion resistance class CRC: 2 - Moderate corrosion stress
• LABS (PWIS) conformity: VDMA24364-B1/B2-L
• Ambient temperature: -20 °C ... 80 °C
• Impact energy in end positions: 0.07 J
• Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke: 51 N
• Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke: 68 N
• Moving mass for 0 mm stroke: 8 g
• Additional moving mass per 10 mm stroke: 2 g
• Basic weight for 0 mm stroke: 87 g
• Additional weight per 10 mm stroke: 15 g
• Type of mounting: Either: With through-hole With accessories
• Pneumatic connection: M5
• Material collar screws: High-alloy stainless steel
• Material cover: Wrought aluminium alloy
• Material dynamic seals: NBR TPE-U(PU)
• Material piston rod: High-alloy stainless steel
• Material cylinder barrel: Wrought aluminium alloy

Compact cylinder

ADVU-12-25-P-A

156504

GTIN: 4052568071073
