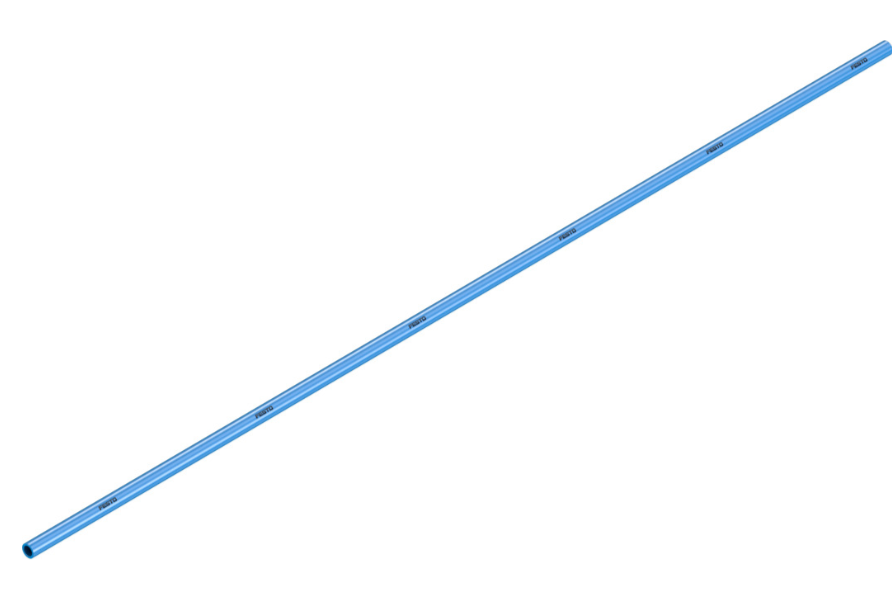

Festo Plastic tubing PUN-H-3X0,5-BL ( 3 MM BLUE ) 197382

• Outside diameter: 3 mm
• Flow-relevant bending radius: 12 mm
• Inside diameter: 2.1 mm
• Min. bending radius: 6 mm
• Instructions on use: TPE-U Ether based
• Tubing characteristics: Suitable for energy chains
• Operating pressure complete temperature range: -0.095 MPa ... 0.6 MPa
• Operating pressure complete temperature range: -0.95 bar ... 6 bar
• Operating pressure complete temperature range: -13.775 psi ... 87 psi
• Temperature-dependent operating pressure: -0.095 MPa ... 1 MPa
• Temperature-dependent operating pressure: -0.95 bar ... 10 bar
• Temperature-dependent operating pressure: -13.775 psi ... 145 psi
• Note on operating pressure: Water: temperatur-dependent operating pressure, see diagram, max. 0.3 MPa at 0 - 60 °C
• Approval: German Technical Control Board (TÜV)
• Certificate issuing authority: B 013277 0506 00
• Operating medium: Compressed air to ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)
• Fire test material: UL94 HB
• LABS (PWIS) conformity: VDMA24364-B2-L
• Suitability for the production of Li-ion batteries: Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils
• Cleanroom class: Element installed statically, no meaningful evaluation possible according to ISO 14644-1
• Suitable for use with food: See supplementary material information
• Ambient temperature: -35 °C ... 60 °C
• Product weight according to length: 0.0042 kg/m
• Pneumatic connection: For push-in connector outside diameter of 3 mm
• Colour: Blue
• Shore hardness: D 52 +/-3
• Note on materials: RoHS-compliant
• Material tubing: TPE-U(PU)

Plastic tubing

PUN-H-3X0,5-BL

197382

GTIN: 4052568045111
