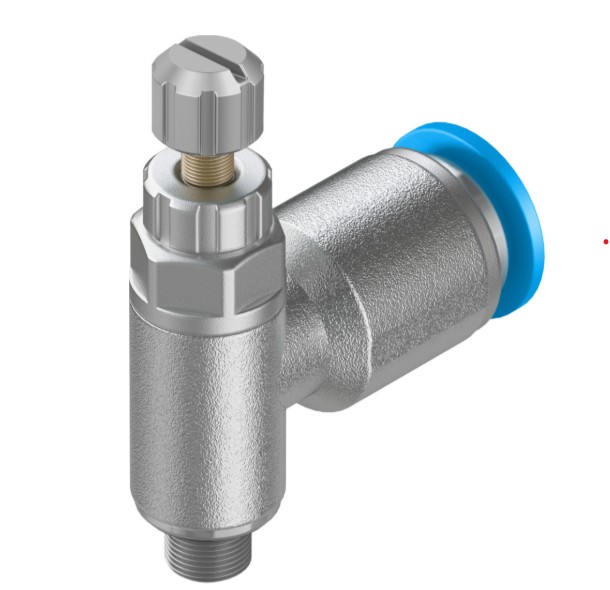

Festo One-way flow control valve GRLA-M5-QS-6-RS-D 197578

Valve function
Exhaust air one-way flow control function

Pneumatic connection, port 1
QS-6

Pneumatic connection, port 2
M5

Adjustment component
Knurled screw

Type of mounting
Screw-in

Standard nominal flow rate in flow control direction
115 l/min

Standard nominal flow rate in blocked direction
70 l/min ... 110 l/min

Operating pressure
0.2 bar ... 10 bar

Ambient temperature
-10 °C ... 60 °C

Maritime classification
See certificate

Mounting position
Optional

Symbol
00991452

Operating pressure complete temperature range
0.2 bar ... 10 bar

Standard flow rate in flow control direction (0.6->0 MPa, 6->0 bar, 87->0 psi)
185 l/min

Standard flow rate in non-return direction (0.6->0 MPa, 6->0 bar, 87->0 psi)
145 l/min ... 170 l/min

Operating medium
Compressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot medium
Lubricated operation possible (in which case lubricated operation will always be required)

LABS (PWIS) conformity
VDMA24364-B1/B2-L

Cleanroom class
Class 4 according to ISO 14644-1

Media temperature
-10 °C ... 60 °C

Nominal torque
0.8 Nm

Product weight
14 g

Material screwed plug
Brass

Note on materials
RoHS-compliant

Material seals
NBR

Material release ring
POM

Material adjusting screw
High-alloy stainless steel

Material swivel fitting
Die-cast zinc, Chromated

One-way flow control valve

GRLA-M5-QS-6-RS-D

197578

GTIN: 4052568045333
