Festo Pressure gauge MA-40-10-1/8 162835

• ndicating range: 0 bar ... 10 bar
• Indicating range: 0 psi ... 145 psi

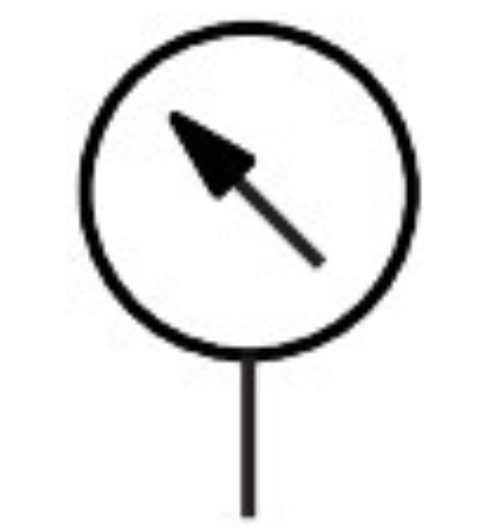

• Symbol: 00991463
• Conforms to standard:EN 837-1
• Nominal size of pressure gauge: 40
• Explosion protection: The information in the certificate must be observed! Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX)
• Design: Bourdon tube pressure gauge
• Type of mounting: In-line installation
• Operating mediumInert gases Neutral fluids
• Note on operating and pilot medium: No acetylene No oxygen
• Operating pressure: 0 MPa ... 1 MPa
• Operating pressure: 0 bar ... 10 bar
• Operating pressure: 0 psi ... 145 psi
• Alternating load factor: 0.66
• Measurement accuracy class: 2.5
• Degree of protection: IP43
• Media temperature: -20 °C ... 60 °C
• Ambient temperature: -20 °C ... 60 °C
• LABS (PWIS) conformity: VDMA24364-B1/B2-L
• Note on materials: RoHS-compliant
• Position of connection: Centred, rear side
• Pneumatic connection: R1/8
• Material in contact with the medium: Brass
• Material screwed plug: Brass
• Material housing: PBT
• Material screen: PS
• Housing colour: Black
• Product weight: 60 g
• Scale: Double scale Bar (outside scale) psi (inner scale)

Pressure gauge

MA-40-10-1/8-EN

162835

GTIN: 4052568036607
