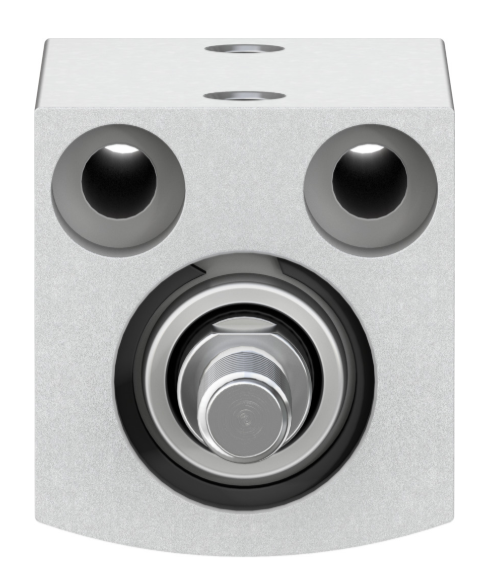

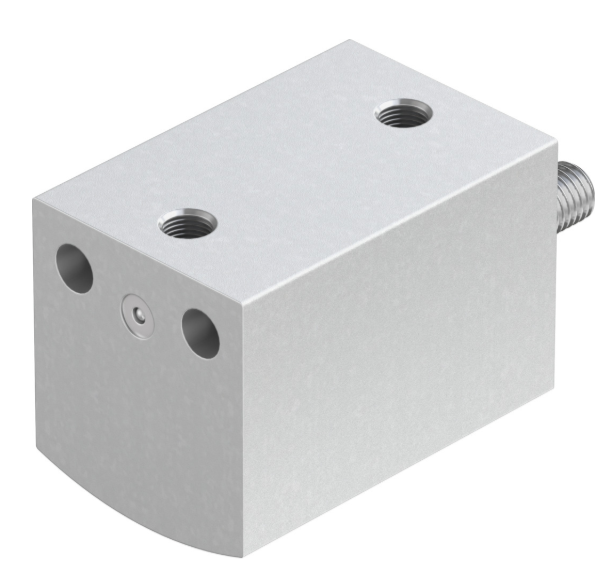

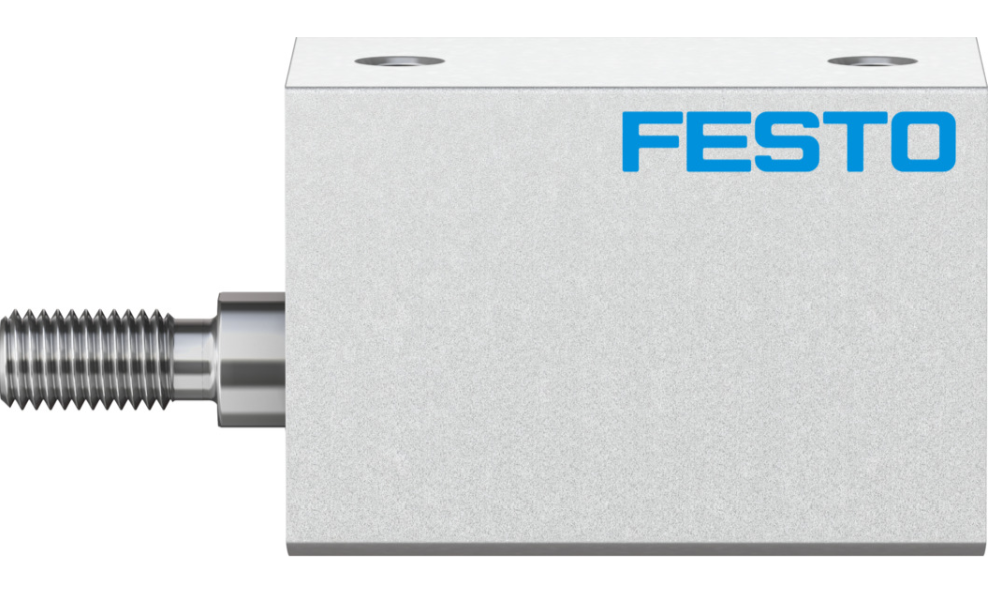

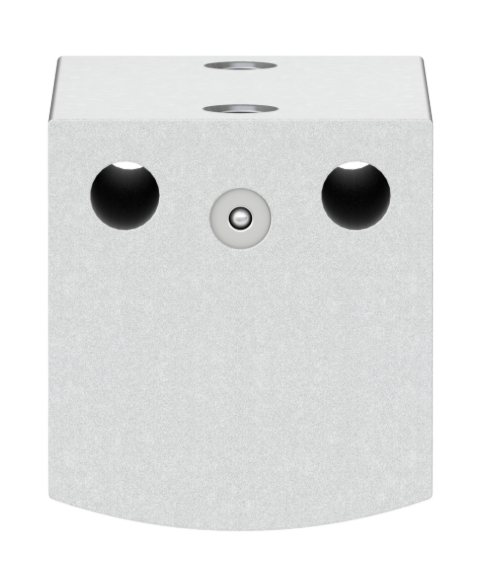

Festo Short-stroke cylinder ADVC-16-20-A-P 188126

• Stroke: 20 mm
• Piston diameter: 16 mm
• Cushioning: Elastic cushioning rings/plates at both ends
• Mounting position: optional
• Mode of operation: Double-acting
• DesignPiston: Piston rod
• Position detection: Without

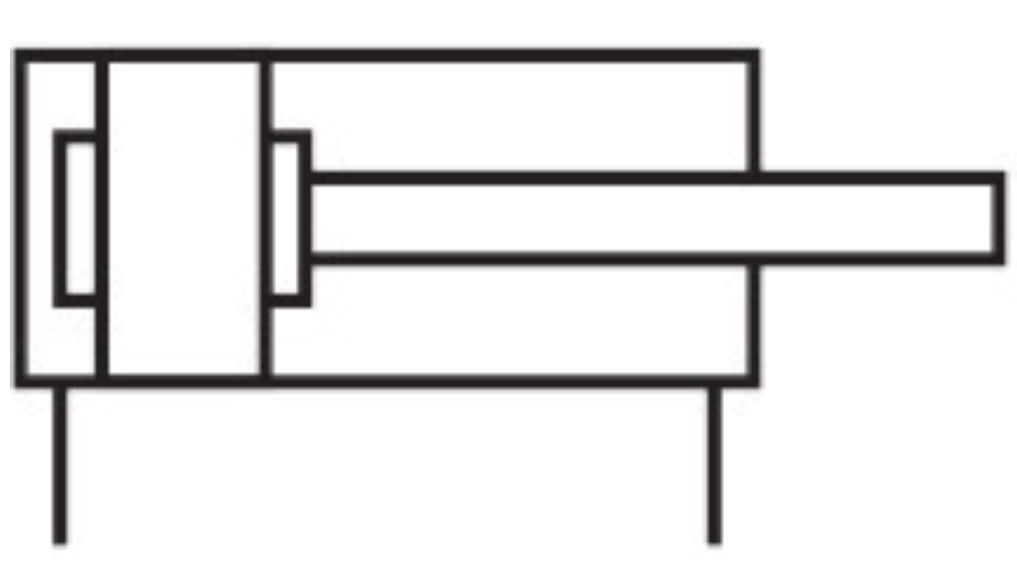

• Symbol: 00991227
• Operating pressure: 0.1 MPa ... 1 MPa
• Operating pressure: 1 bar ... 10 bar
• Operating pressure: 14.5 psi ... 145 psi
• Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
• Note on operating and pilot medium: Lubricated operation possible (in which case lubricated operation will always be required)
• Corrosion resistance class CRC: 1 - Low corrosion stress
• LABS (PWIS) conformity: VDMA24364-B1/B2-L
• Ambient temperature: -20 °C ... 80 °C
• Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke: 90 N
• Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke: 121 N
• Moving mass: 17 g
• Moving mass for 0 mm stroke: 9 g
• Additional moving mass per 10 mm stroke: 4 g
• Product weight: 66 g
• Basic weight for 0 mm stroke: 36 g
• Additional weight per 10 mm stroke: 14 g
• Type of mounting: Either: With through-hole With accessories
• Pneumatic connection: M5
• Note on materials: RoHS-compliant
• Material cover: Wrought aluminium alloy Anodised
• Material seals: NBR TPE-U(PU)
• Material housing: Wrought aluminium alloy Anodised
• Material piston rod: High-alloy steel

Short-stroke cylinder

ADVC-16-20-A-P

188126

GTIN: 4052568077136
